FOM moduloR2R – Modular Roll-to-Roll Pilot Line

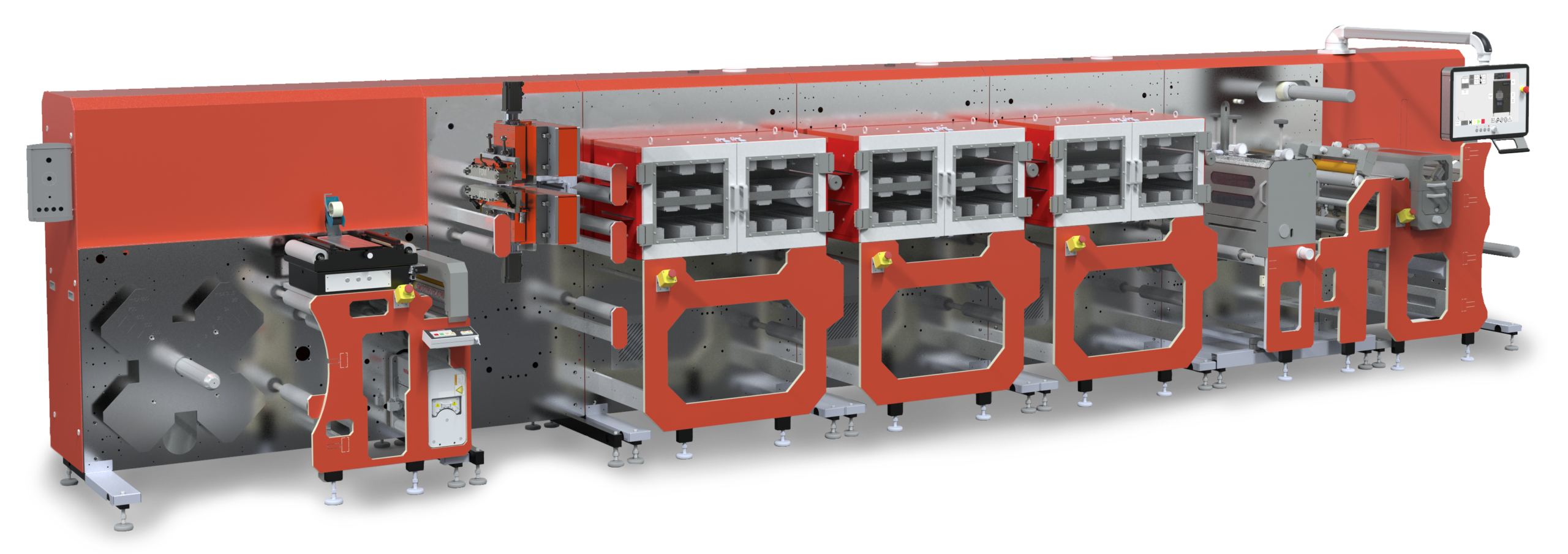

The FOM moduloR2R is a highly capable, modular roll-to-roll pilot line platform. The base model consists of unwind, rewind, oven, and slot-die stations for simple pilot-scale thin film production. It can be easily customised and optimised for a given coating process by adding various machine modules and process stations. The FOM moduloR2R makes designing the perfect production line for a particular process straightforward, representing an ideal first step from R&D to full-scale production.

Key Features

Specifications

moduloR2R 300
Type	Roll-to-roll pilot line (modular)
Dimensions (L×W×H)	800–1,600 × 1,290 × 1,800 mm per module
Weight	300–800 kg per module
Substrate Roller Width	Max 350 mm
Substrate Width (max)	Max 350 mm
Coating Width	Up to 300 mm
Substrate Roll Diameter	Max 700 mm
Coating Speed	Up to 20 m min⁻¹
Slot-Die Compatibility	FOM SD 25 – FOM SD 300
Positioning	Fully motorized x-y-z (1 µm precision)

moduloR2R 500
Type	Roll-to-roll pilot line (modular)
Dimensions (L×W×H)	800–1,600 × ~1,500 × 2,000 mm per module
Weight	300–800 kg per module
Substrate Roller Width	Max 550 mm
Substrate Width (max)	Max 550 mm
Coating Width	1 mm to 500 mm
Substrate Roll Diameter	Max 700 mm
Coating Speed	Up to 20 m min⁻¹
Slot-Die Compatibility	FOM SD 25 – FOM SD 500
Positioning	Fully motorized x-y-z (1 µm precision)

Shared Specifications (300 & 500)
Oven — Flotation	Max 200°C, drying length 1,000 mm, airflow up to 900 m³/h
Oven — Optima	Max 200°C, up to 9 m drying length, flexible substrates
Power Supply	3×400 V + N + PE, 50/60 Hz, max 63 A
Compressed Air	5–7 bar, clean and dry, ISO 8573-1:2010 Class 1.2.3
Certifications	CE (EN 60204-1, ISO 13849-1); 2006/42/EC Annex II B

Contact PhotonExport for pricing and availability in Spain and Portugal.
