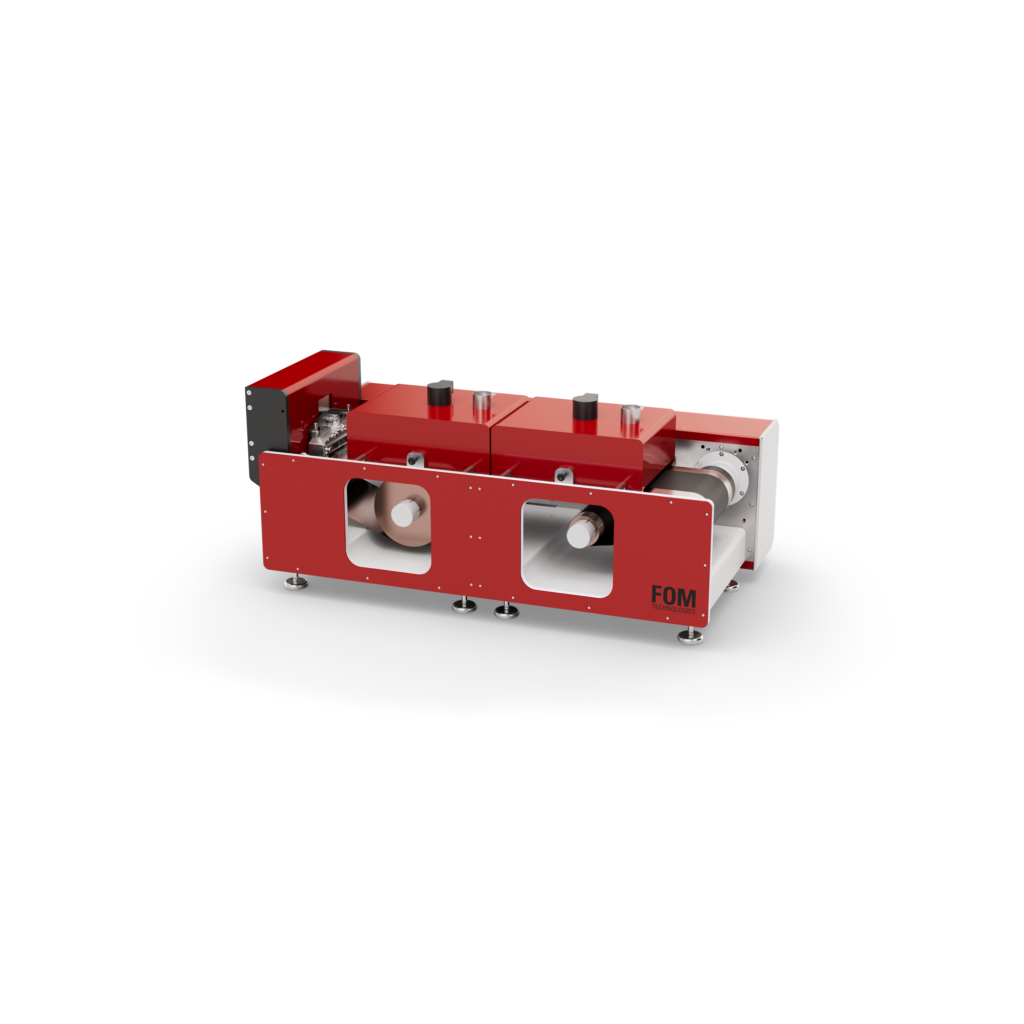

FOM omegaR2R – Versatile Lab-Scale R2R Coater
The FOM omegaR2R is a versatile lab-scale roll-to-roll slot-die coater designed to replicate pilot-scale coating processes with precision, reproducibility, and scalability. Its modular design and multiple drying options (IR, UV, hot air) enable seamless adaptation to evolving research needs. The FOM omegaR2R bridges the gap between lab-scale research and pilot-scale production.
Key Features
- Desktop roll-to-roll slot-die coater
- Fully motorized coating bridge
- Non-contact coating with μm precision
- Coating width from 1 mm to 300 mm
- Intuitive coating software and recipe control
- Modular oven system (Hot air, IR, UV, hot air/IR) – sections of 250 or 500 mm
- Software-controlled syringe pump
- Excellent layer uniformity and repeatability
- Remote support & troubleshooting
- Broad viscosity range
Specifications
| Type | Roll-to-roll |
| Weight | 265–300 kg |
| Max Coating Speed | Up to 5 m/min |
| Slot-Die Temperature | Up to 80°C |
| Max Oven Temperature | Up to 200°C |
| Max Coating Width | ≤300 mm |
| Dimensions (W×D×H) | 1570–2570 × 895 × 680 mm |
