FOM Technologies Slot-Die Heads
FOM Technologies slot-die heads are engineered for precision, durability, and seamless integration with FOM coating machines. Made from 316L stainless steel or PEEK polymer, they ensure superior flatness, thermal and mechanical resistance, ideal for high-performance thin-film applications.
Key Features
- Outstanding precise and consistent flow control
- Designed for quick and easy installation
- Flexible shim thicknesses and stripe patterning options
- Lightweight yet durable design
- Minimizes material waste with a low dead-volume design
- Provides uniform coatings and customizable coating patterns
- Seamlessly integrates with all FOM coating machines
- Easy assembly, disassembly, cleaning, and maintenance
- Adaptable design with or without a meniscus guide
Steel Series (316L Stainless Steel)

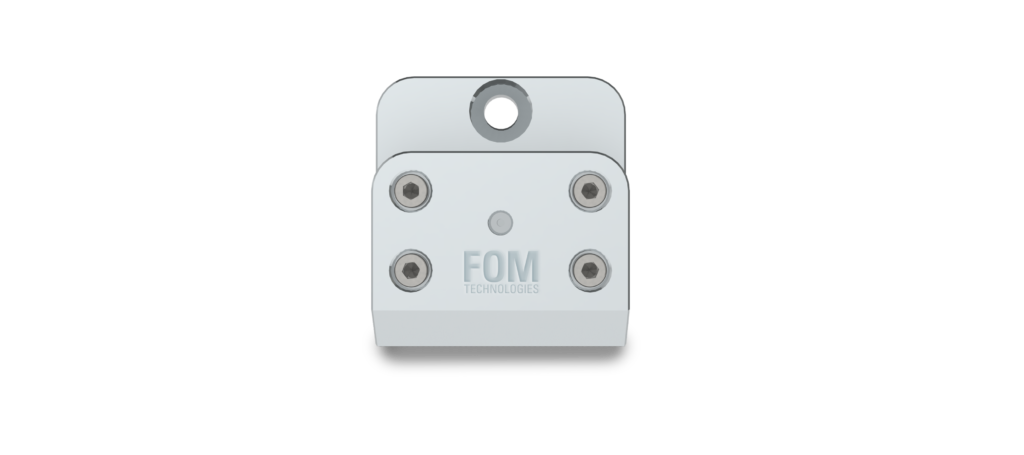

- FOM SD 25 Steel – Coating width 1 to 25 mm
- FOM SD 50 Steel – Coating width 1 to 50 mm
- FOM SD 100 Steel – Coating width 1 to 100 mm
- FOM SD 200 Steel – Coating width 1 to 200 mm
PEEK Series
FOM PEEK slot-dies are crafted from Polyetheretherketone (PEEK), offering exceptional thermal stability, chemical resistance, and mechanical durability. Engineered for harsh chemical environments.

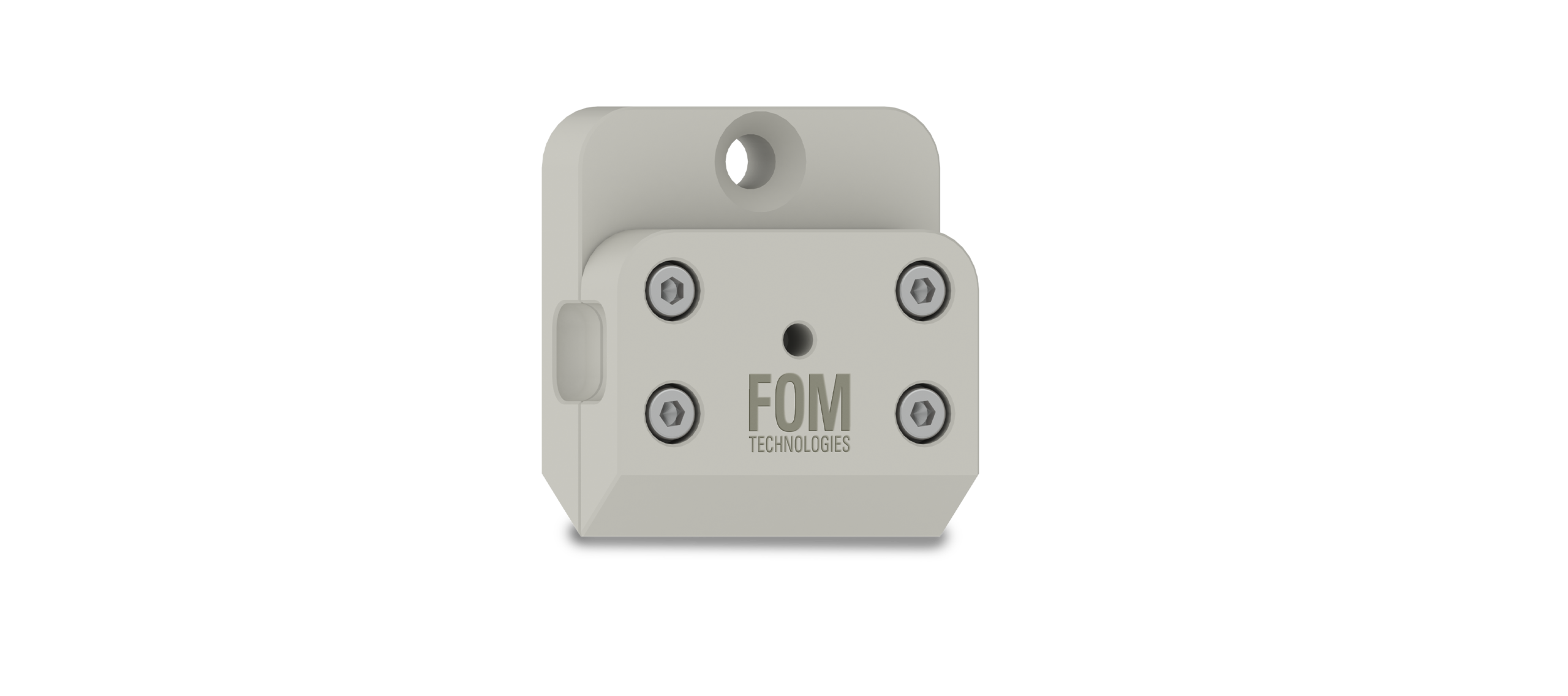

- FOM SD 25 PEEK – Coating width 1 to 25 mm
- FOM SD 50 PEEK – Coating width 1 to 50 mm
- FOM SD 100 PEEK – Coating width 1 to 100 mm
- FOM SD 200 PEEK – Coating width 1 to 200 mm
Contact Photon Export for pricing and availability in Spain and Portugal.
