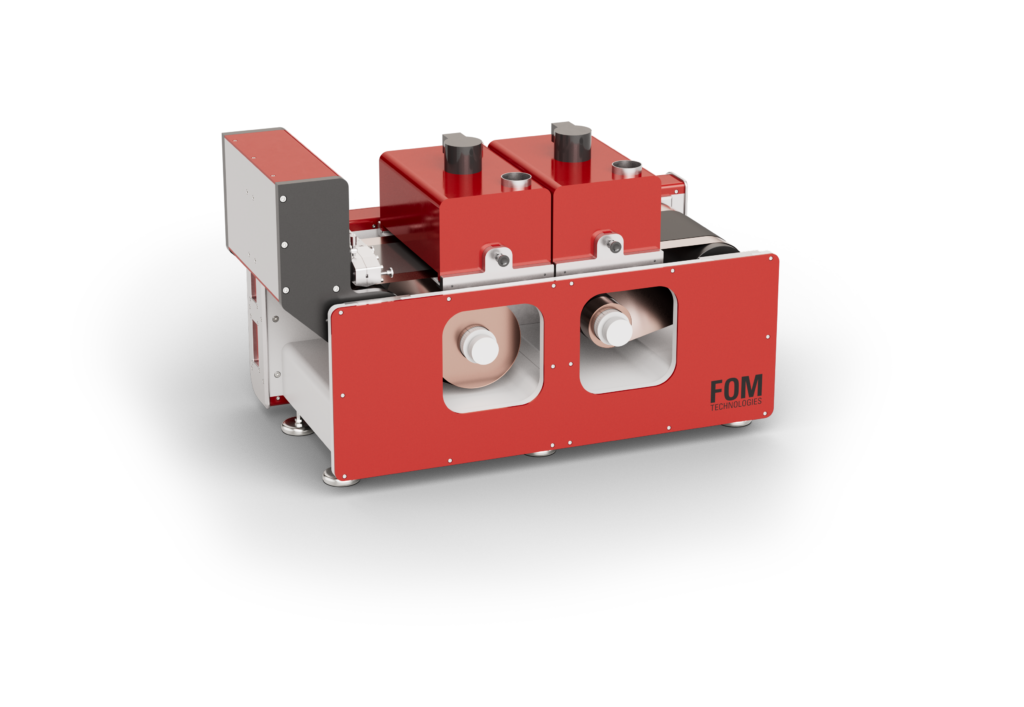

FOM omicronR2R – Compact Roll-to-Roll Coater
The FOM omicronR2R is a compact, versatile R2R slot-die coater. Its modular design and multiple drying options enable seamless adaptation to evolving research needs to safeguard your investment. The FOM omicronR2R enables researchers to accelerate and perfect their processes at lab-scale using formats common to pilot-scale.
Key Features
- Small footprint roll-to-roll slot-die coater
- Seamless fume hood and glove box integration
- Fully motorized coating bridge
- Non-contact coating with μm precision
- Coating width from 1 mm to 200 mm
- Intuitive coating software and recipe control
- Modular oven system (Hot air, IR, UV, hot air/IR) – sections of 250 mm or 500 mm
- Software-controlled syringe pump
- Excellent layer uniformity and repeatability
- Remote support & troubleshooting
- Broad viscosity range
Specifications
| Type | Roll-to-roll |
| Weight | 150–225 kg |
| Max Coating Speed | Up to 3 m/min |
| Slot-Die Temperature | Up to 80°C |
| Max Oven Temperature | Up to 200°C |
| Max Coating Width | ≤200 mm |
| Dimensions (W×D×H) | 1095–1595 × 600 × 671 mm |
Contact Photon Export for pricing and availability in Spain and Portugal.
