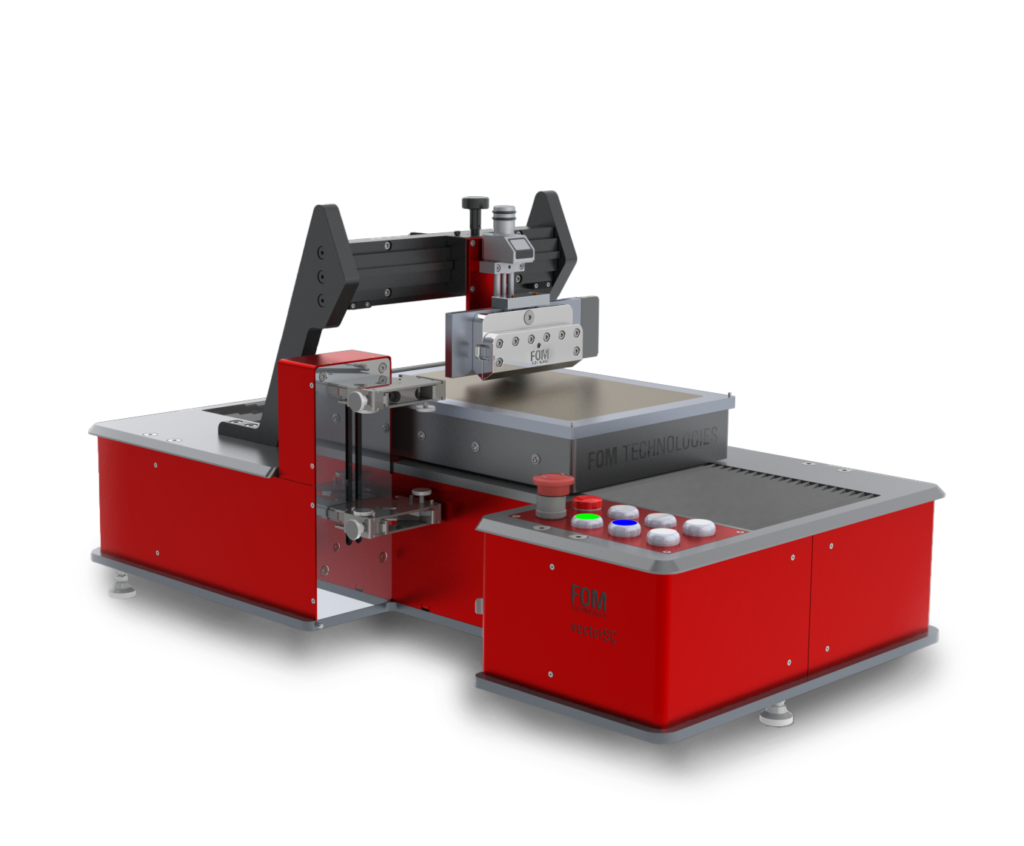

FOM vectorSC – Advanced Sheet Coater
The FOM vectorSC has been designed from the ground up to allow easy control over coating on rigid and flexible substrates. By integrating industry-grade components and user-friendly recipe features, the FOM vectorSC provides a seamless, accelerated user workflow and excellent control for coating various active materials. It is an ideal solution for users aiming to bridge the gap between fundamental research and pilot-scale production.
Key Features
- Uniform dry film thickness from nm to μm
- Coating width from 1 mm to 200 mm
- Microporous vacuum substrate holder
- Automated coating via intuitive GUI
- Remote access from a PC or Tablet
- Quick-action buttons
- Designed for rigid and flexible substrates
- Integrated pump with software-controlled wet film thickness
- Designed for fluids up to 20,000 cPs
- Built-in hotplate for drying
- Fume hood and glove box integration
- Remote support and troubleshooting
- Motorized slot-die head positioning (Option)
Specifications
| Type | Sheet-based |
| Weight | 71 kg |
| Max Coating Speed | Up to 5 m/min |
| Slot-Die Temperature | Up to 80°C |
| Chuck Temperature | Up to 200°C |
| Max Coating Width | ≤200 mm |
| Dimensions (W×D×H) | 870 × 530 × 500 mm |
| Max Substrate Size | 200×300 mm |
