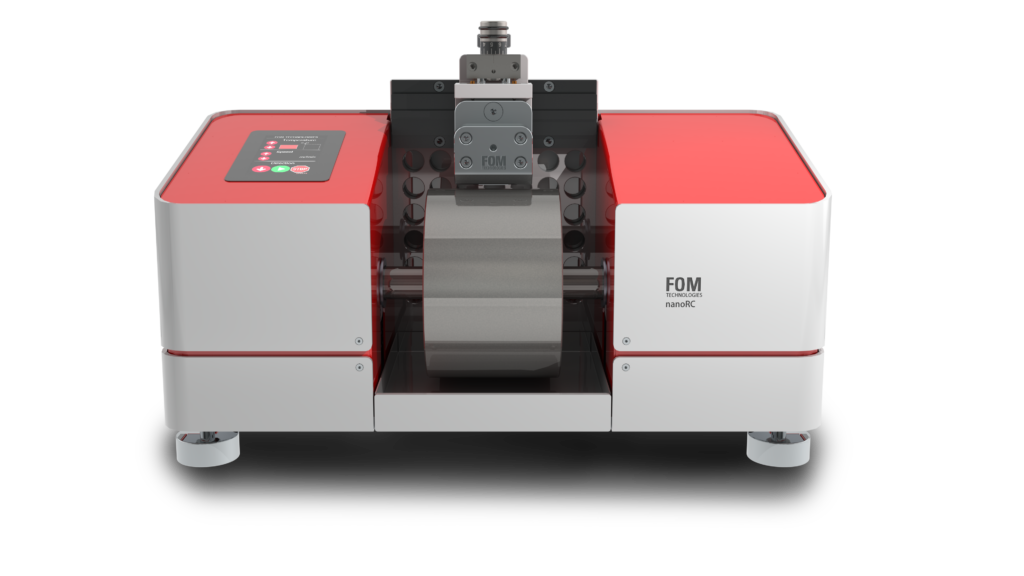

FOM nanoRC – Compact Roll-Based Coater
The FOM nanoRC is the ideal entry point to begin scalable coating of functional thin films and devices. Designed to mimic the complex coating processes achieved on large scale roll-to-roll machines, while requiring a fraction of the cost and physical footprint. The FOM nanoRC provides users with a simple route to precise, repeatable and scalable thin film production from any solution or slurry based precursor.
Key Features
- Non-contact coating within μm precision
- Uniform dry film thickness from nm to μm
- Coating width from 1 mm to 100 mm
- Excellent layer uniformity and repeatability
- Designed for flexible substrates
- Semi-automated coating via intuitive touch panel
- Built-in hotplate for drying
- Integrated drying cartridges
- Seamless fume hood and glove box integration
- Plug and play installation
Specifications
| Type | Roll-based |
| Weight | 19 kg |
| Max Coating Speed | Up to 2 m/min |
| Slot-Die Temperature | Up to 80°C |
| Roll Temperature | Up to 160°C |
| Max Coating Width | ≤100 mm |
| Max Roll Length | ≤500 mm |
| Dimensions (W×D×H) | 530 × 230 × 350 mm |
Contact Photon Export for pricing and availability in Spain and Portugal.
